Finger Joint Box Generator
Design precise finger joint boxes for your CNC router or laser cutter. Customize dimensions, export as SVG, DXF or PDF, and start cutting.
Free tools: SVG, DXF & PDF exports — up to 10 per day.
Pro tools: from 1 € per file — or every box tool with Pro, from 20 €/year.

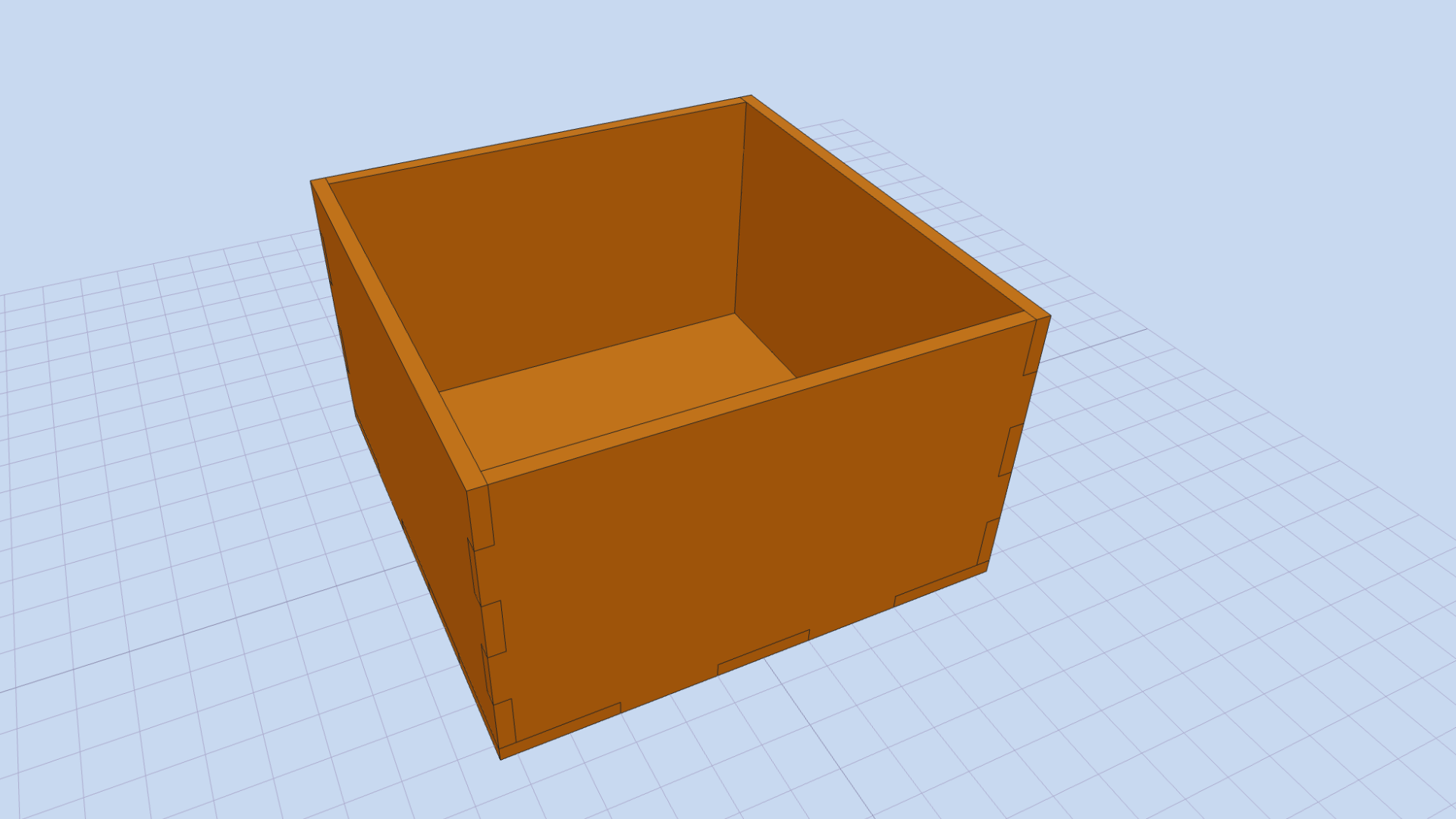

Box Designer
Create precise finger joint boxes with customizable dimensions, material thickness, and joint parameters. Perfect for CNC routers and laser cutters.
- Open, closed & frame boxes
- Cross-lap dividers
- Kerf compensation
- SVG, DXF, PDF, STEP & STL

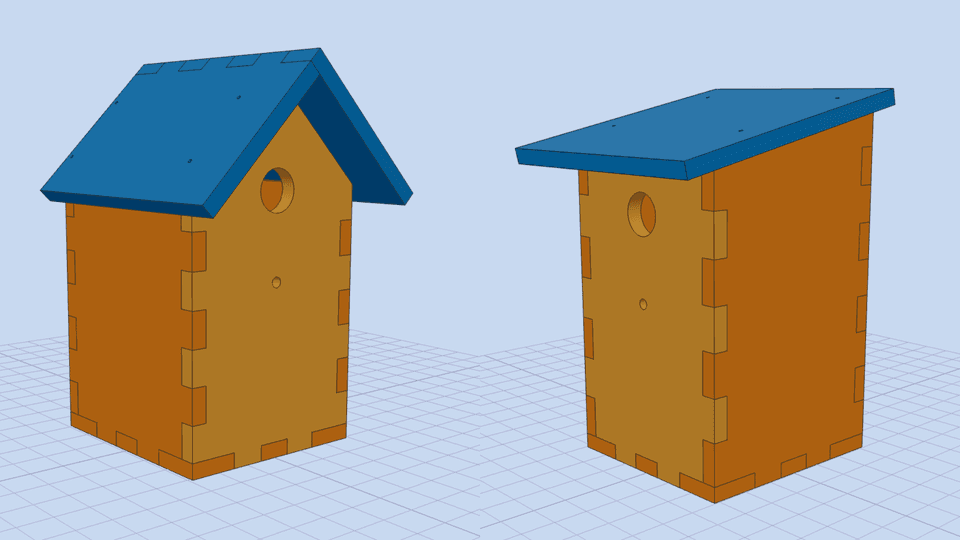

Birdhouse Designer
Design nesting boxes and bird feeders with finger joints in four styles: shed roof, gable roof, open front or an open feeder. The screwed roof stays removable for cleaning.
- Four styles incl. a feeder
- Removable roof + mounting panel
- SVG, DXF, PDF, STEP & STL

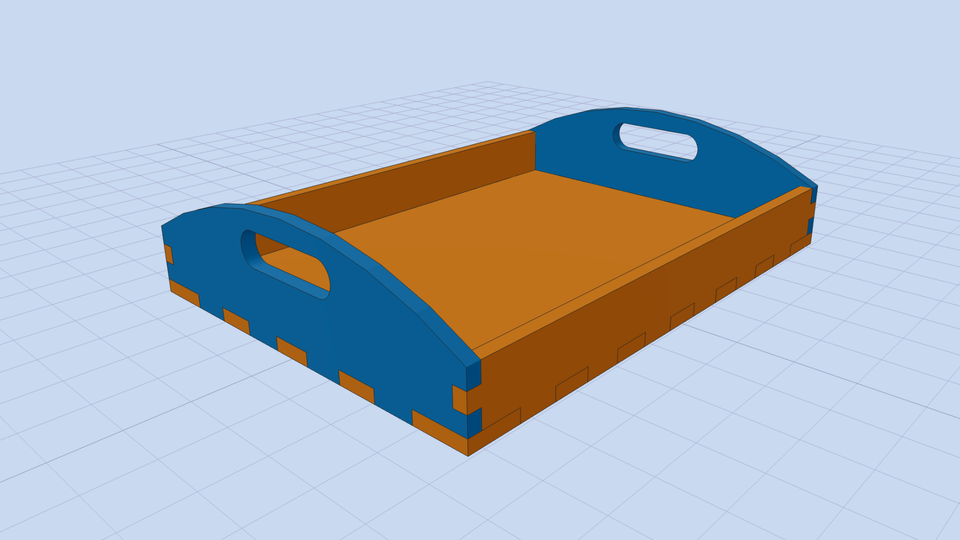

Tray Designer
Design a wooden serving tray with finger joints: low long walls, raised end walls with an arc, slopes or a straight top, and centered handle cutouts in three shapes.
- Arc, sloped & straight end walls
- Handle cutouts in three shapes
- 2D & 3D preview
- SVG, DXF, PDF, STEP & STL

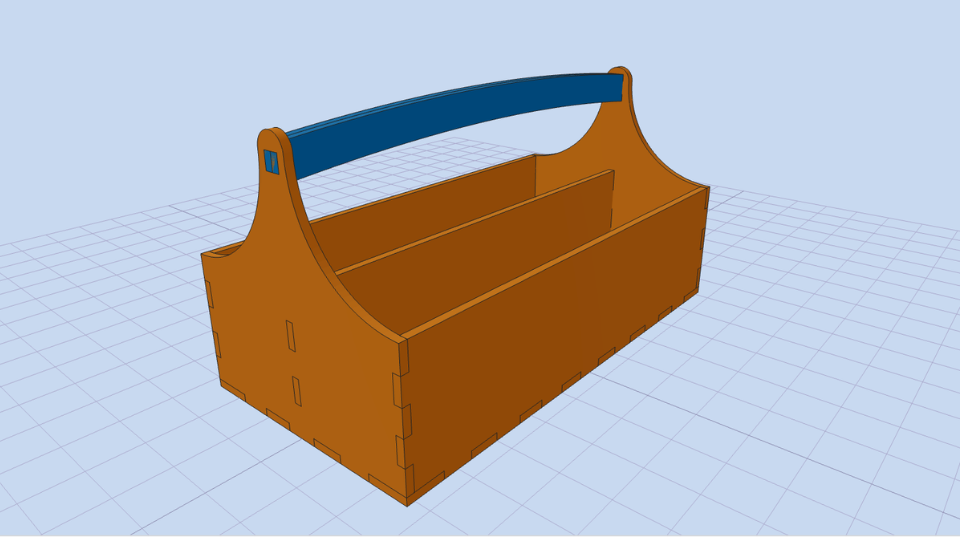

Toolbox Designer
Design a classic wooden toolbox with finger joints, arched or diagonal side panels, a continuous handle bar, and an optional center divider.
- Arc & diagonal side profiles
- Handle bar, optional double
- Center divider
- SVG, DXF, PDF, STEP & STL

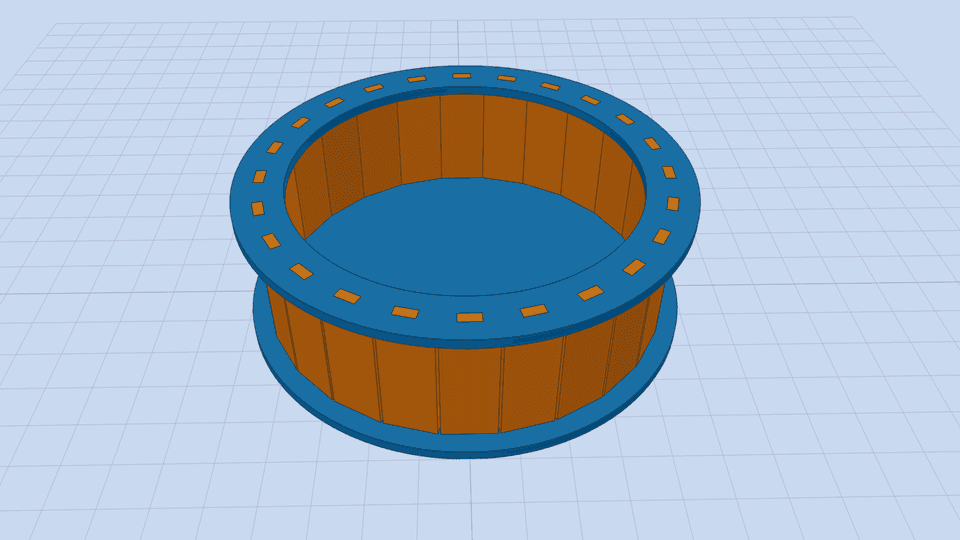

Round Box Designer
Design round boxes from flat parts: a full bottom plate and a top ring with slot rings, connected by vertical staves with tabs. Diameter, height and stave count freely adjustable.
- Round shape, no bending
- Stave count & gap adjustable
- Plate overhang & ring width
- SVG, DXF & PDF

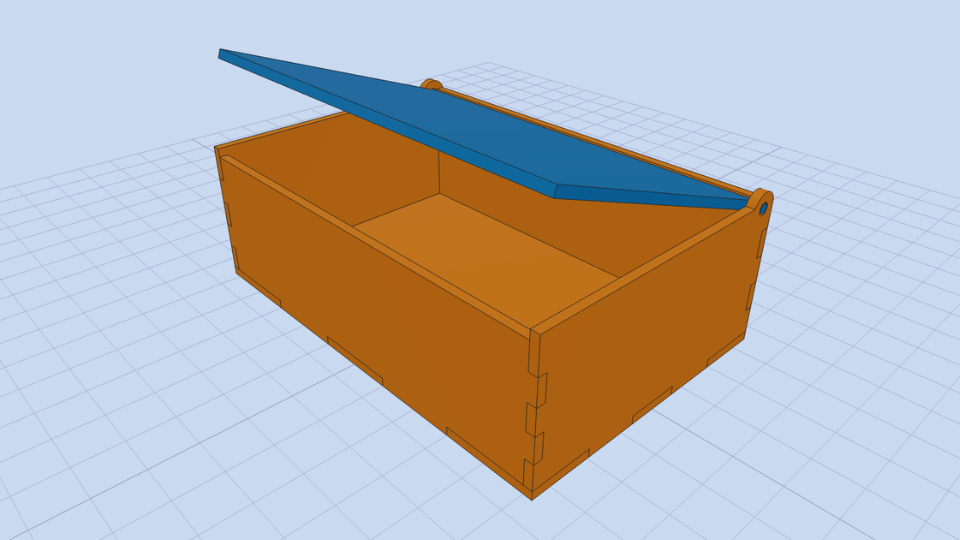

Hinged Lid Box Designer
Design boxes with a hinged lid and pin hinge mechanism. Pin tabs on the lid engage with rounded cutouts on the side panels for smooth rotation.
- Pin hinge mechanism
- Configurable lid overhang
- Lid clearance
- SVG, DXF, PDF, STEP & STL

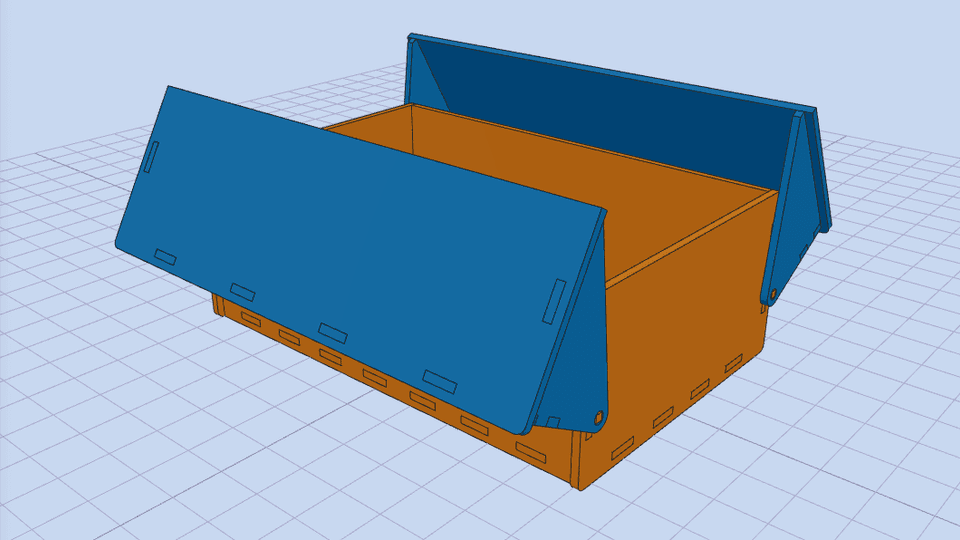

Flap Lid Box Designer
Design boxes with one or two flaps that swing outward around a low pivot. The pivot pin is an extended wall tab, no hardware needed.
- 1 or 2 flaps
- Hinge without hardware
- Finger joints or enclosed
- SVG, DXF, PDF & STEP

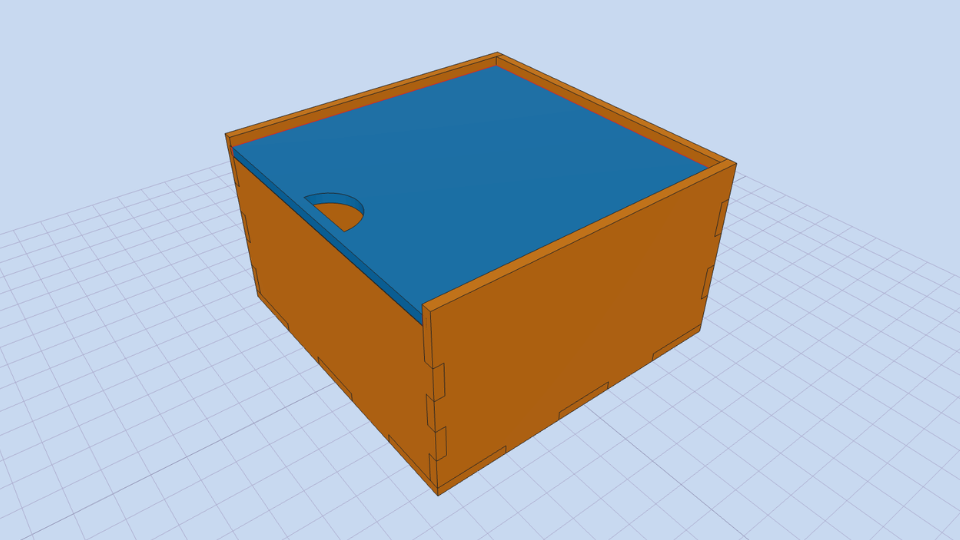

Sliding Lid Box Designer
Design boxes with a groove-guided sliding lid. The lid slides through grooves in the back and side panels, with a half-moon grip cutout for easy opening.
- Groove-guided lid
- Half-moon grip
- Configurable groove depth
- SVG, DXF, PDF, STEP & STL

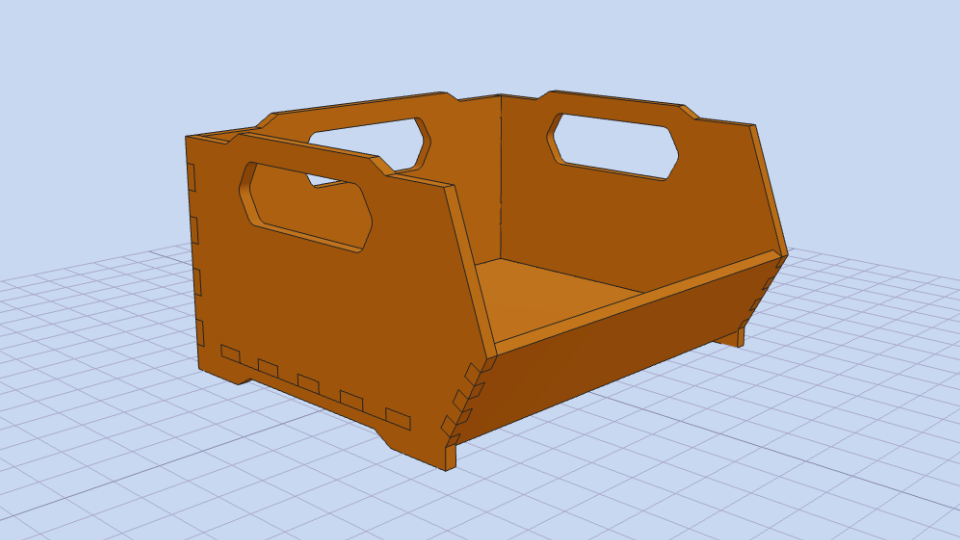

Organizer Box Designer
Design organizer boxes with a sloped front opening for easy access. Adjustable front height, tilt angle, and optional enclosed joints that hold without glue.
- Sloped front opening
- Adjustable tilt angle
- Enclosed joint option
- SVG, DXF, PDF, STEP & STL

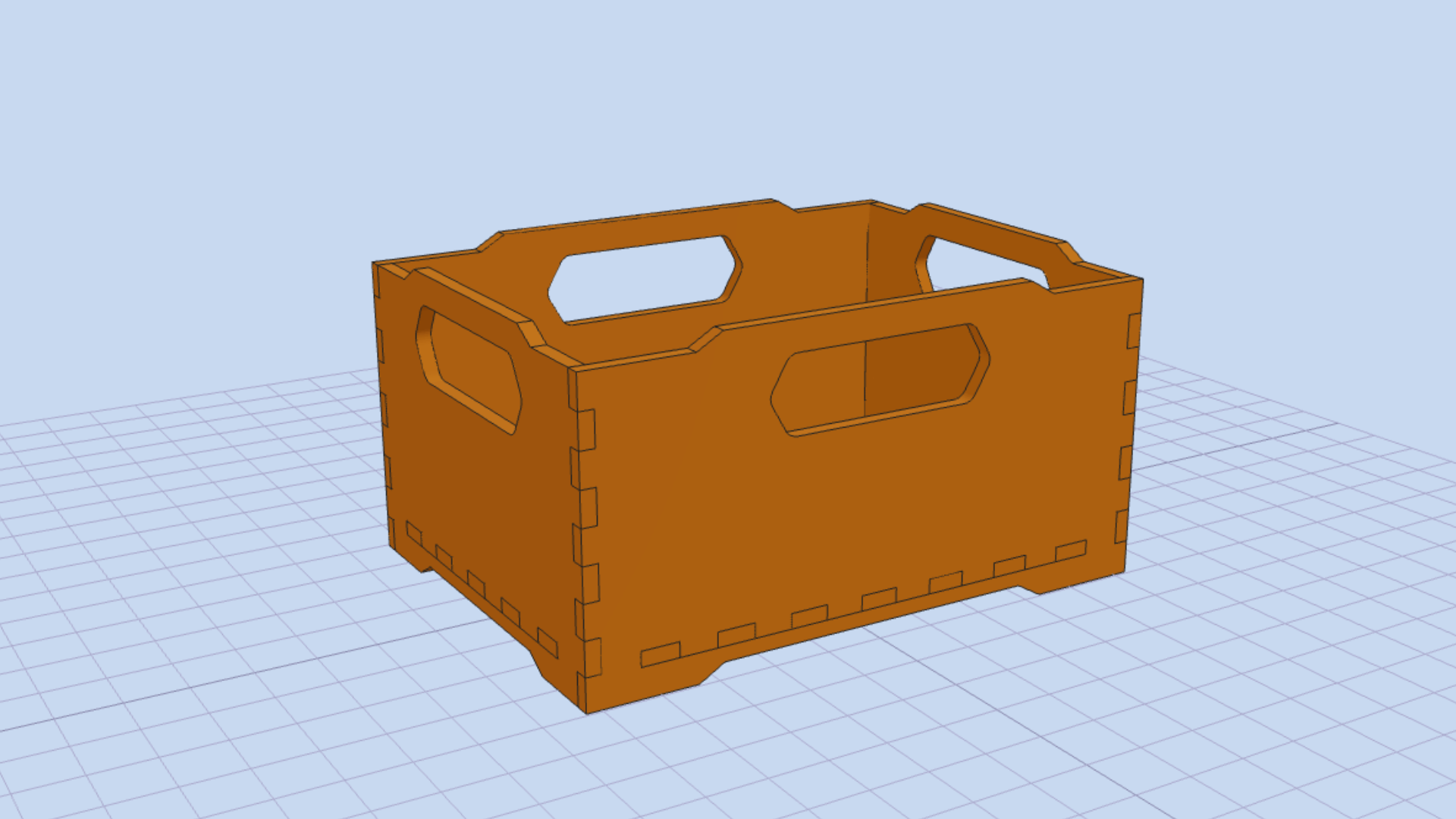

Stackable Box Designer
Design boxes that stack together with interlocking tabs. Choose simple or nested stacking, add handle cutouts, and export production-ready files.
- Simple & nested stacking
- Raised bottom plate
- Handle cutouts
- SVG, DXF, PDF, STEP & STL

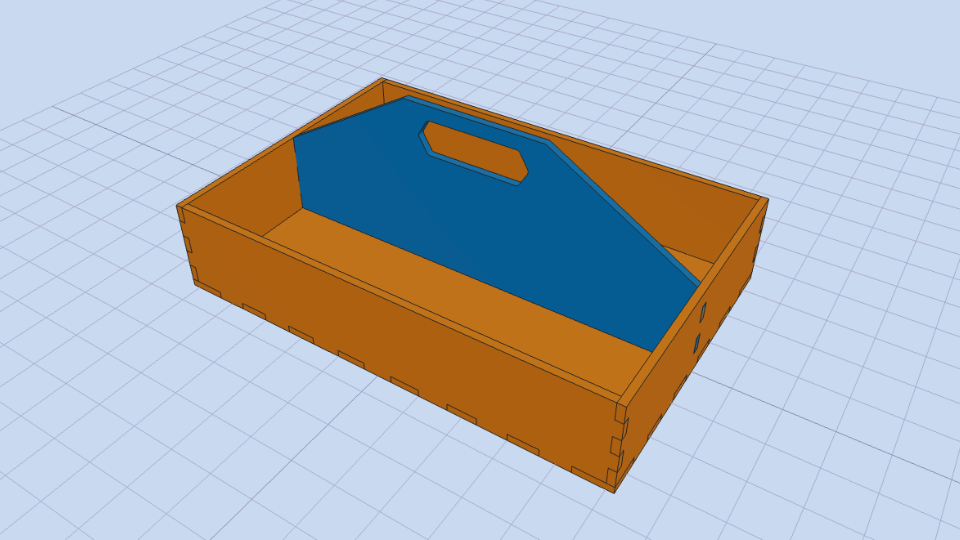

Carrier Box Designer
Design finger joint carrier boxes with a center divider that extends above the walls with an integrated grip cutout. Add separators to create compartments and configure stacking.
- Center divider with grip cutout
- Full & half-width separators
- Stackable option
- SVG, DXF, PDF, STEP & STL

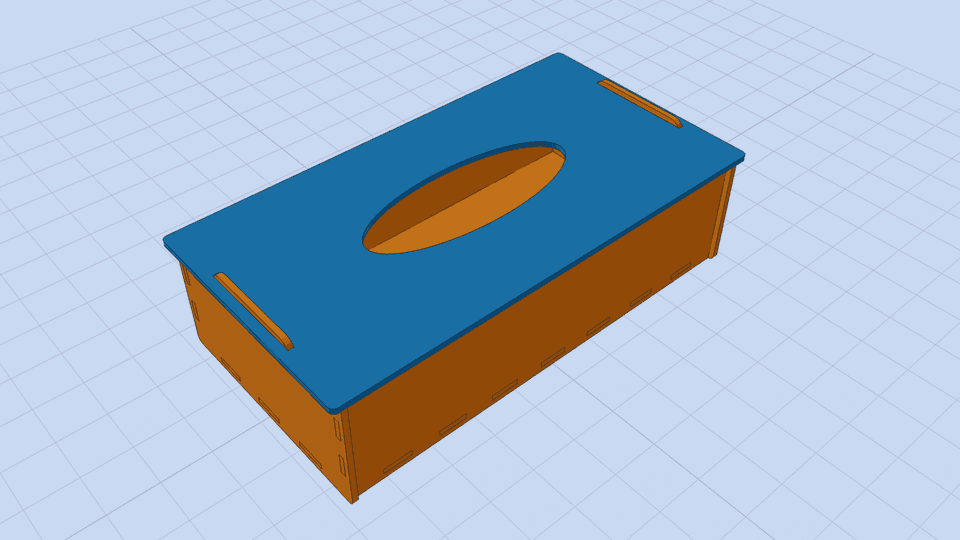

Tissue Box Designer
Design a wooden tissue box with finger joints and a slip-on lid: an elliptical tissue opening in the lid, held in place by two rounded retention tabs on the end walls — lift it off to refill.
- Slip-on lid with retention tabs
- Elliptical opening, adjustable
- Enclosed glue-free option
- SVG, DXF, PDF, STEP & STL

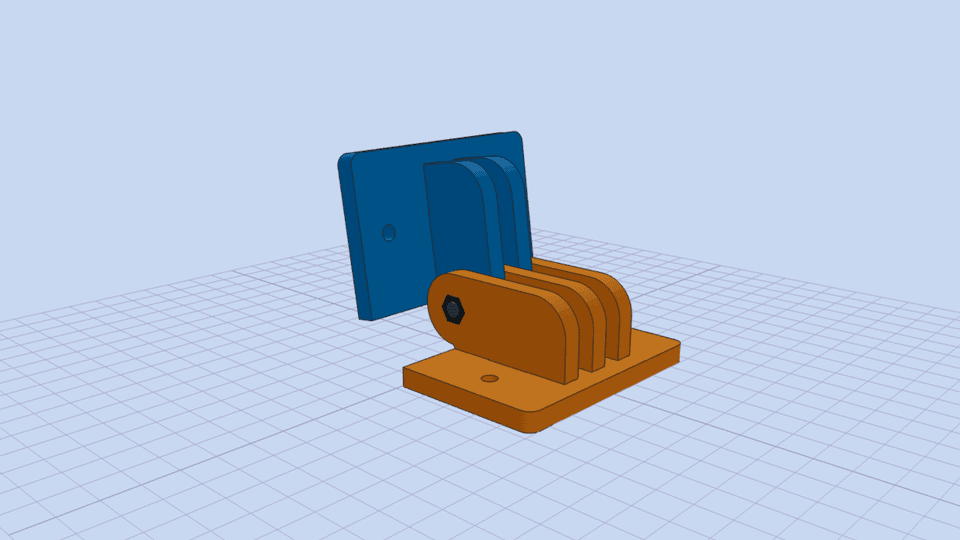

Box Hinge Designer
Design a surface-mounted hinge for your boxes from flat parts: two screw-on mounting plates, knuckle leaves that slot into them, and a round rod or screw as the pin — opens up to 180°.
- Opens up to 180°
- Rod or M3–M8 screw
- Flush nut & head pockets
- SVG, DXF, PDF, STEP & STL

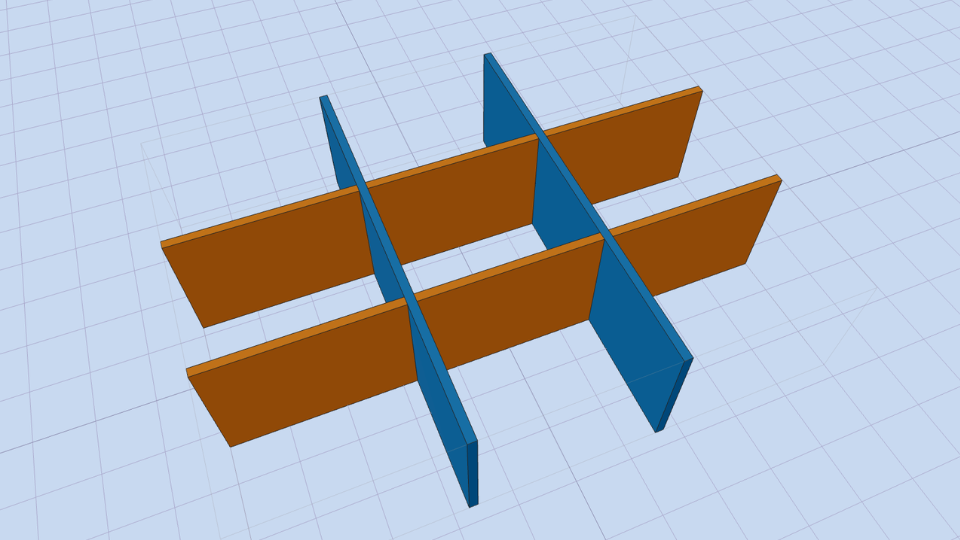

Box Divider Designer
Create interlocking cross-lap dividers for boxes. X and Y dividers interlock with half-height slots to form a stable grid inside any box.
- Cross-lap joints
- Flexible grid configuration
- Automatic slot calculation
- SVG, DXF & PDF
How It Works
Design
Set your box dimensions, material thickness, and finger joint parameters.
Preview
See a real-time 2D and 3D preview of your box design.
Export
Download as SVG, DXF or PDF and cut on your CNC router or laser cutter.
